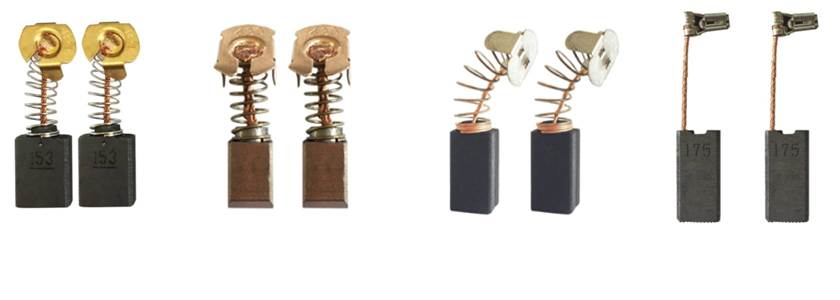

Portable Tool Carbon Brushes

Andhra Carbon Products can propose the ideal carbon brush material to match usage conditions. Carbon brushes are classified into those used for small universal motors in home electronics, automobiles, and other products, and those used in medium- and large-sized DC machines in general industry, railroad cars, and other applications.

Carbon brushes for small motors are widely used in a variety of products including vacuum cleaners, power tools, front-loading washing machines. Carbon brushes for medium- and large-sized motors are used in large DC machines, current-collecting brushes and ground contacts for wind power generation, and other applications.

We are maintaining and enhancing our overseas production system and sales network to build a global supply system. In addition, we develop and design carbon brushes, starting with the materials, to meet needs such as extended motor life, energy savings and smaller brush sizes

Feature :

Andhra carbon Products brushes are manufactured by sintering carbon and metal powders,graphite power and hardening them with pitch and resin.
Different materials produce different characteristics in terms of electrical conductivity, thermal durability, chemical resistance, and sliding properties.

Technical :

FHP MOTORS CARBON BRUSHES, CHARACTERISTICS

Selected range of materials
Customised machined or pressed to size designs
High quality tamping (cable connection)
Exact cable dimension
Good mechanical stability High electrical conductivity
Low friction coefficient
High transient current density
Wide speed range (15 to 45m/s)
Brush wear indicator systems available we are providing line and indicator symbol
Copper flexible correction

FHP MOTORS, APPLICATIONS :

Servomotors
Motors for machine tools
Door and shutter automation
Wheelchairs
Missile motors
Ventilation motors
Photocopiers
Swimming Pool cleaners
Tacho-generators

Carbon Brushes For FHP Motors

Carbographitic grades are prepared from carbon and graphite powder (natural or artificial) agglomerated with appropriate binders to give them good resistance to high temperature and variable loads.

Bakelite-graphite grades are made from natural or artificial graphite powders agglomerated with a thermo-hardening resin to give them a high electrical and mechanical resistance power.

Metal-graphite grades: powdered natural or artificial graphite is mixed with a thermo-setting resin, copper powder, and/or other metal powders. The mix is then pressed and polymerized at a suitable temperature in an inert atmosphere.

Cut-off design

This system is designed to save the damage on commutator of midget motors when brushes are likely to become worm beyond operational limit.

The moment the brush has worn to replacement level the Cut-off pin automatically interrupt the circuit.

By Andhra Carbon Products brushes it means carbon brushes used in wide range of D.C. motors, Power tools, Welding Generators, Variacs, Carbon brushes used for SPM machines, Water Pumps, Tacho Generators Etc. We Manufacture carbon brushes for replacement market for brands such as Bosch, Mico, Eureka Forbes, Hitachi, KPT, KBD etc.

Nowadays most of the power tools are Fitted with Auto Stop Carbon Brushes, these type of carbon brushes automatically cuts off the motor when the brushes wears out up to a certain prescribed limit, thus ensuring the safety of the motors from getting damaged.
